How a Brushless Alternator Generates Voltage

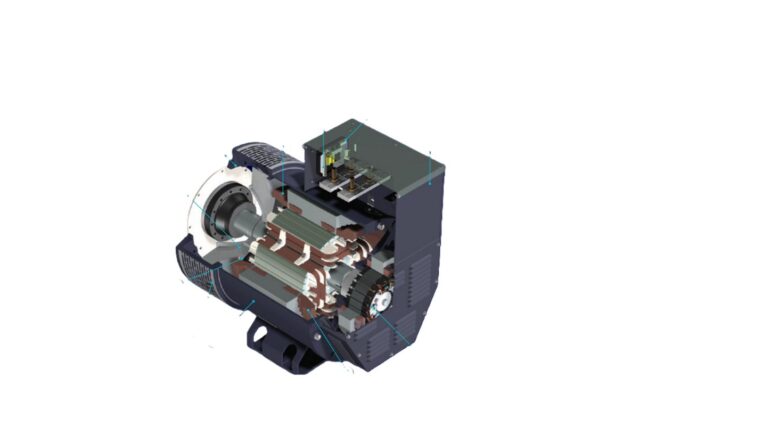

Brushless Alternator for Generators

A brushless alternator is widely used in modern generators because it is reliable and requires less maintenance than older designs with brushes. To understand how it works, you need to look at how voltage is created inside the machine. The process begins with a small amount of residual magnetism and builds up through the exciter and automatic voltage regulator (AVR) until full power is available at the terminals. This step-by-step build-up is what makes the alternator supply stable electricity for homes, businesses, and industries. In this guide, you will learn how a brushless alternator generates voltage and the key parts involved in the process.

Why is voltage build-up or voltage generation is important in brushless alternator

Voltage build-up or voltage generation is the starting point of any brushless alternator. Without it, the machine cannot produce usable electricity at the output terminals. The small residual magnetism in the alternator provides the first source of energy, which is then strengthened by the exciter and AVR. If this process fails, the alternator will either produce no voltage or unstable voltage that cannot power equipment safely. A proper build-up ensures the generator delivers the right level of power, keeps sensitive devices safe, and allows the alternator to respond effectively to changes in load.

The step-by-step sequence for voltage build-up in a brushless alternator

1. Residual magnetism in the main rotor.
   When you turn the engine, small residual magnetism in the main rotor cuts the main stator. This produces a very small AC voltage at the stator terminals.
2. AVR senses the small stator voltage.
   The AVR uses that small AC as its reference and supply. The AVR becomes active and decides the excitation needed.
3. AVR feeds DC to the exciter stator.
   The AVR supplies controlled DC to the exciter stator winding. The DC level depends on the difference between measured and target terminal voltage.
4. Exciter stator induces AC in the exciter rotor.
   The exciter stator field interacts with the rotating exciter rotor. That motion induces AC in the exciter rotor windings.
5. Rotating rectifier converts exciter AC to DC.
   The exciter rotor AC passes through the rotating rectifier. The rectifier produces DC for the main rotor field.
6. Main rotor field strengthens.
   The rectified DC energises the main rotor winding. The rotor then creates a strong rotating magnetic field.
7. Main stator generates full three-phase AC.
   The rotating magnetic field cuts the main stator windings. This produces the full three-phase AC at the alternator terminals. The AVR keeps monitoring and adjusts excitation to maintain stable voltage.

This closed loop repeats until the alternator reaches a steady terminal voltage under load.

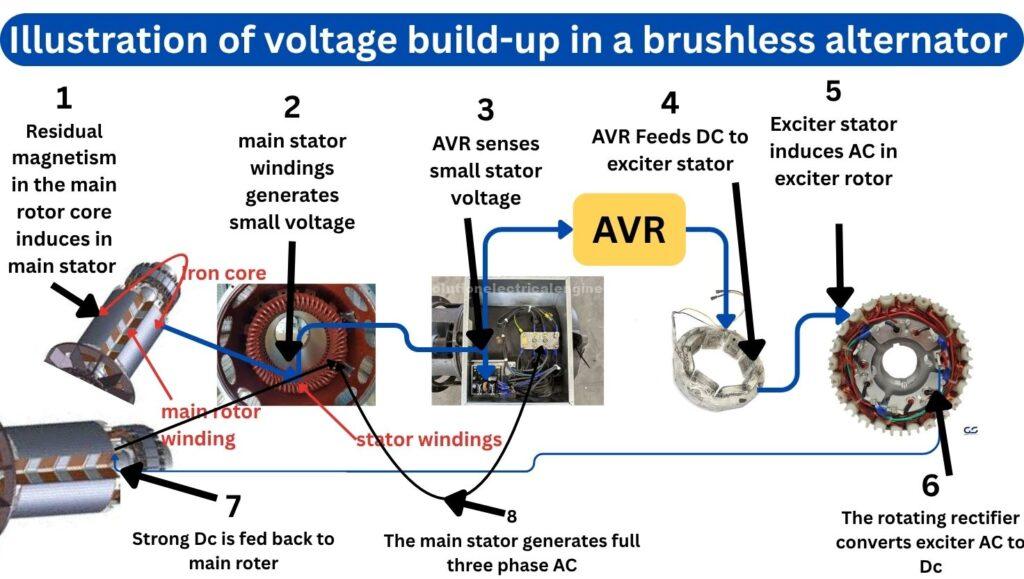

Below is an illustration
