Description

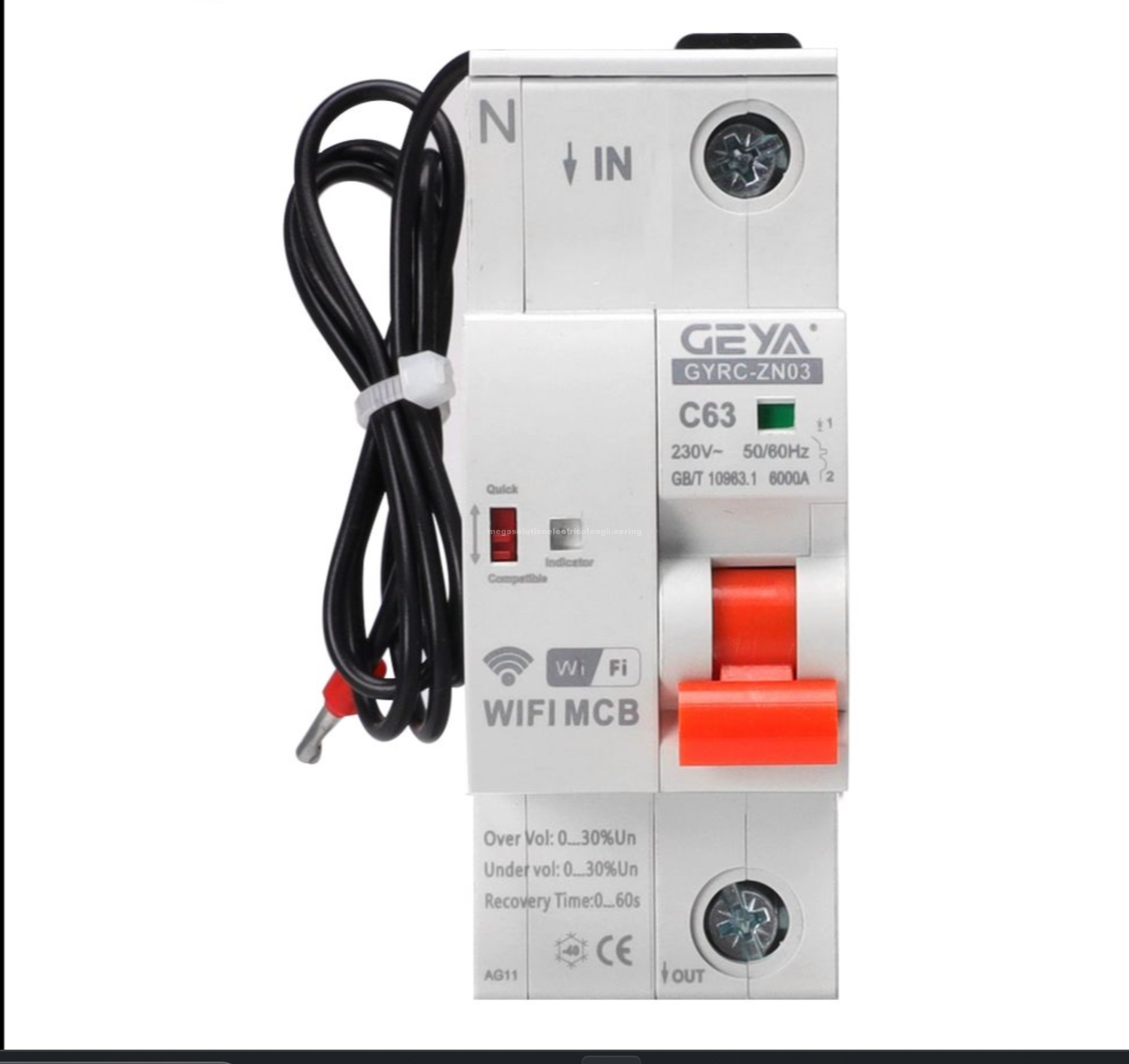

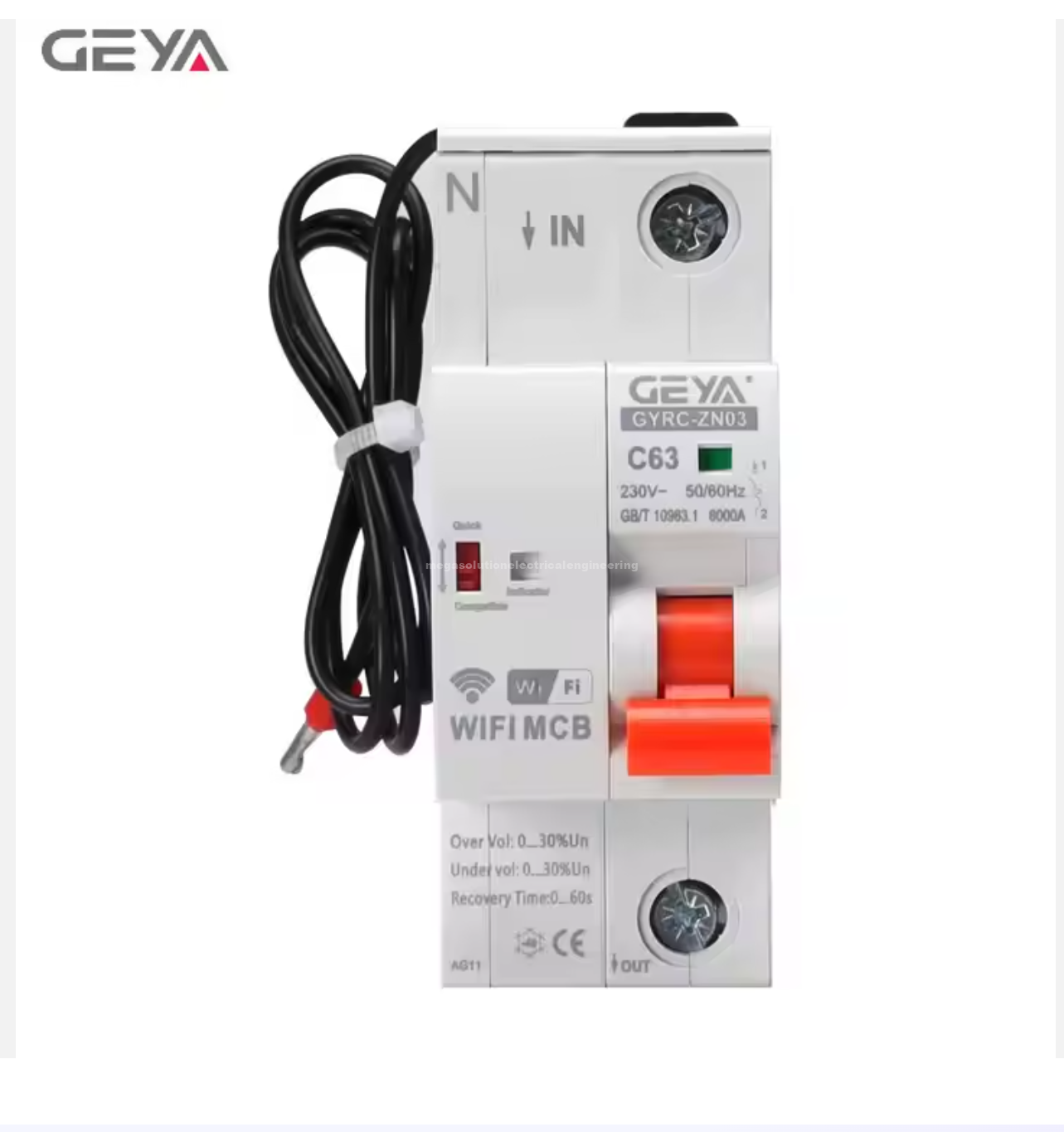

WIFI Circuit Breaker Voice Remote Control Smart Home for Alexa and Google
Specification:
Compliant with standard: GBT 10963 | Product poles: 1P, 2P, 3P, 4P |
Rated voltage: single-phase AC230V/three-phase AC400V 50Hz | Rated current: preferably 20A, 32A, 63A |
Tripping type: C-type (other types can be customized) | Short circuit breaking capacity: Icu=Ics=6KA |
Mechanical life: ≥12000 times | Electrical life: ≥6000 times |
Closing time: ≤1.5s | Opening time: ≤1.0s |
Overvoltage protection: overvoltage setting 250-350V~default value: 280V~; Setting value 0-10s Default value: 3s (setting value APP setting) | |
Under voltage protection: Under voltage setting 110-200V~default value: 165V~; Setting value 0-10s Default value: 3s (setting value APP setting) | |
Timing control: Enable/disable timing APP settings | |
Key attributes
Breaking Capacity: Icu=Ics=6KA
Rated Voltage: single-phase AC230V/three-phase AC400V 50Hz
BCD Curve: C
Brand Name: GEYA
Type: MCB
Rated Frequency (Hz): 50Hz
Notice:
1. This product supports 2.4GHz wireless WiFi networks;
2. During the distribution network, pay attention to the distribution network button being in the distribution network state. After the distribution network is completed, shift to the working state;
3. The installation of this product must be carried out by a professional electrician for installation and debugging
