Description

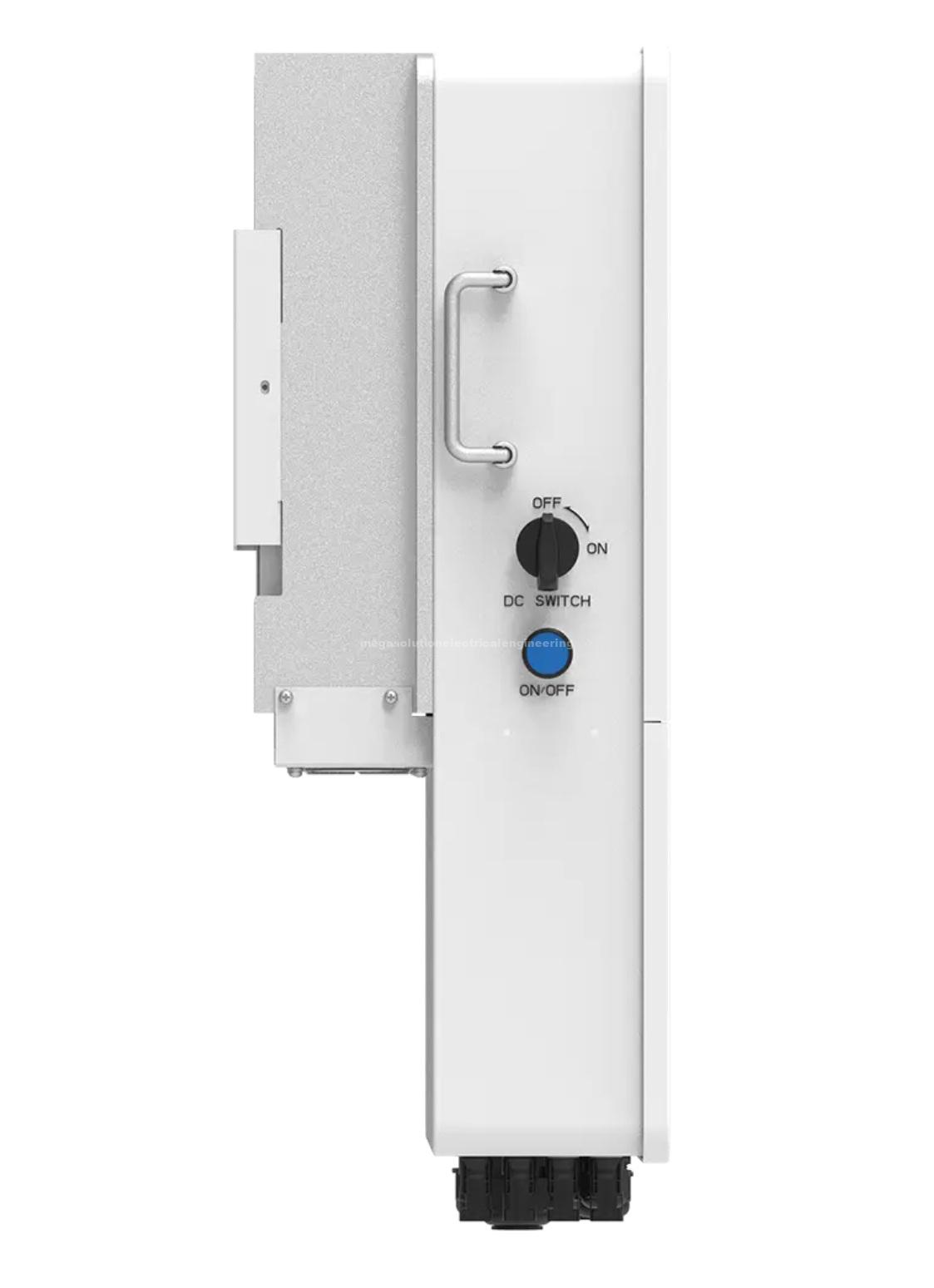

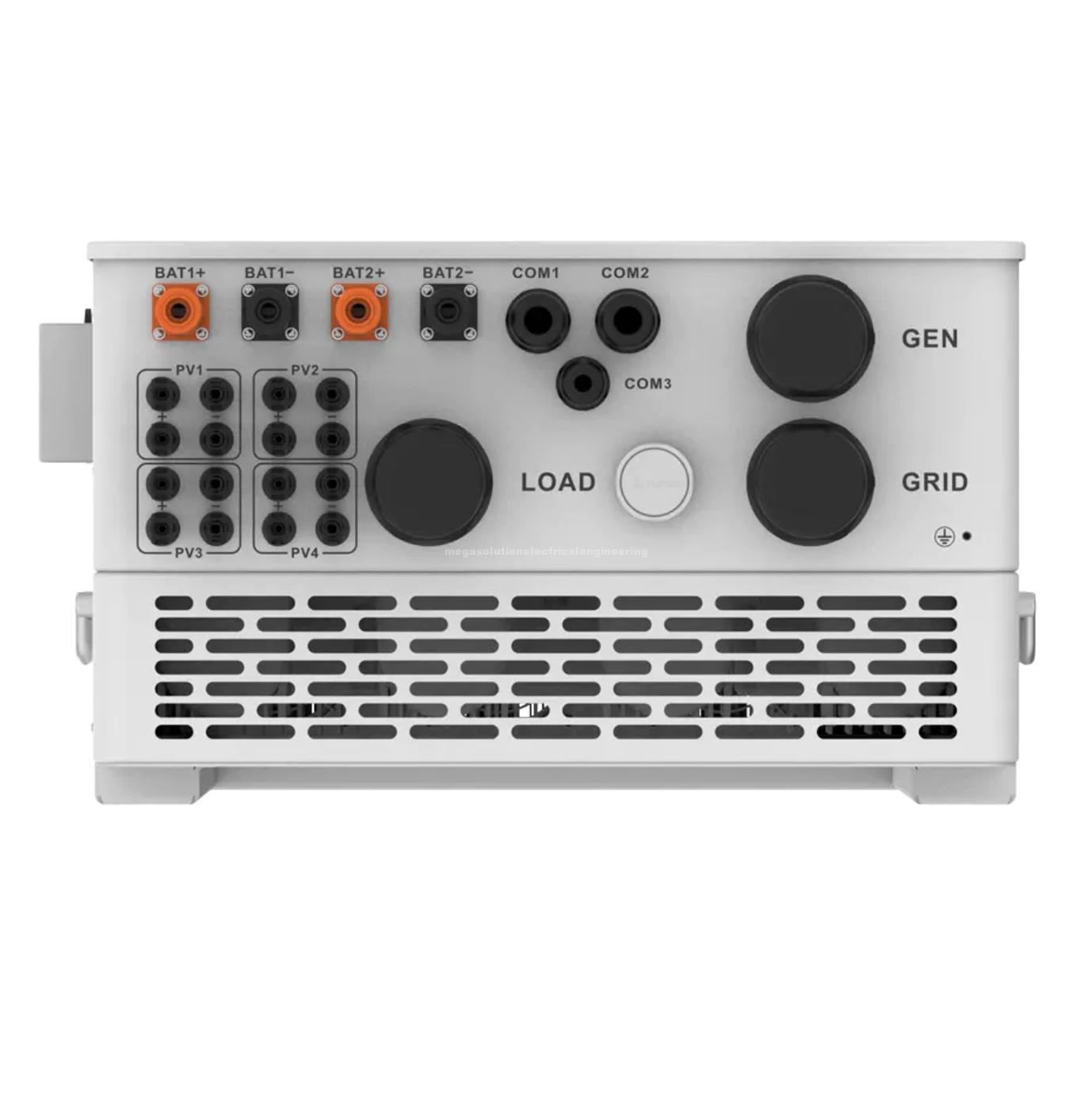

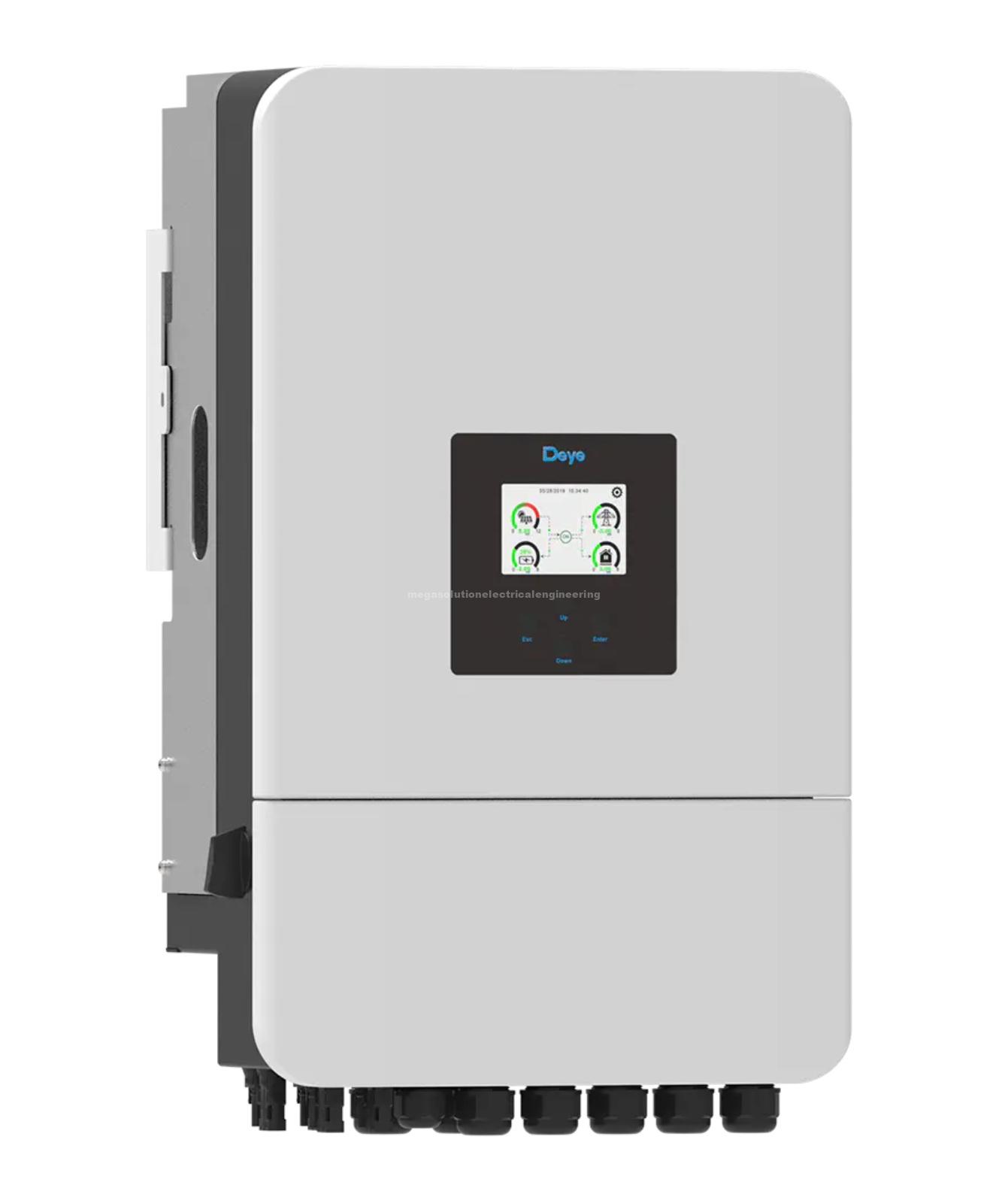

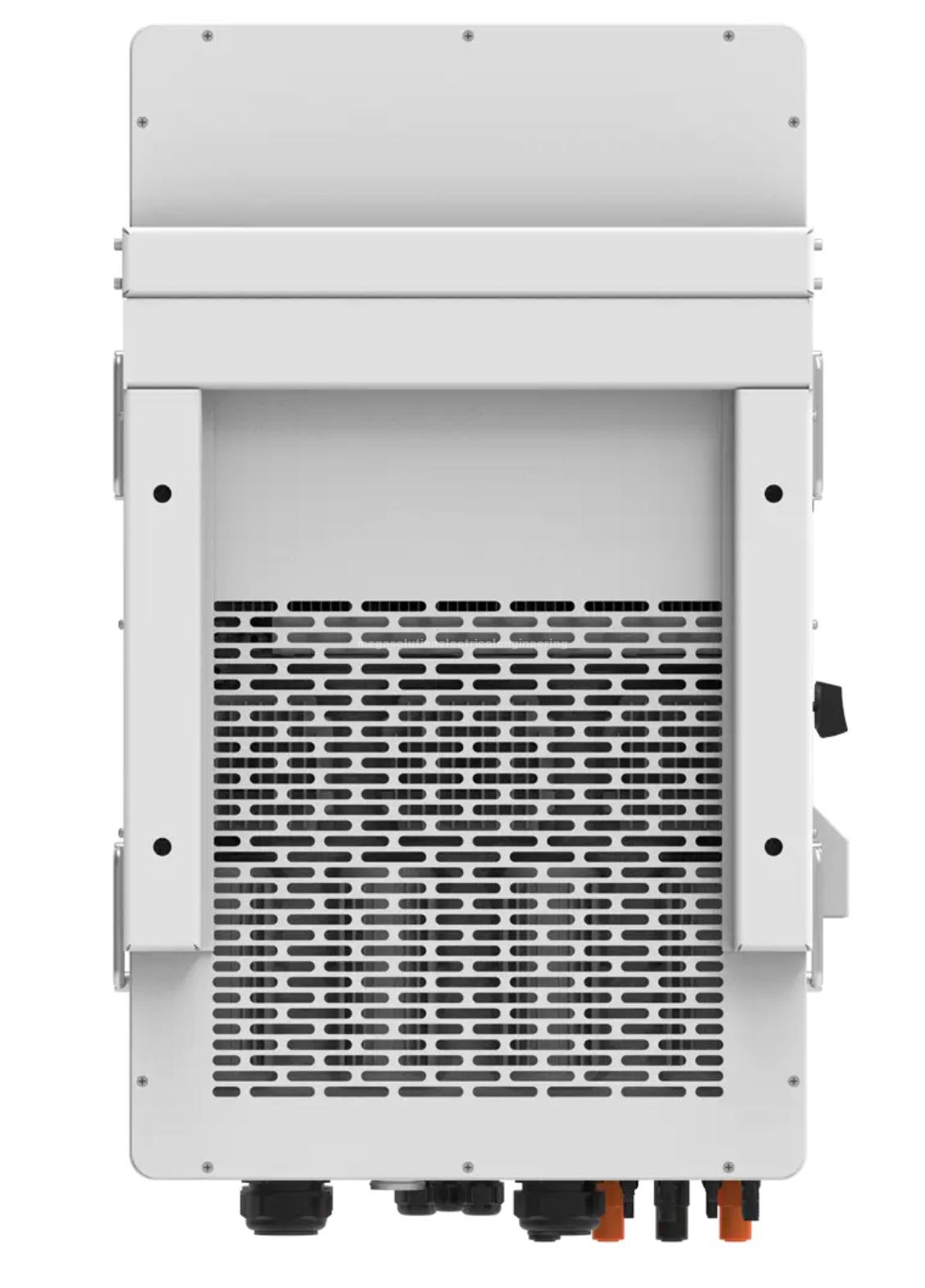

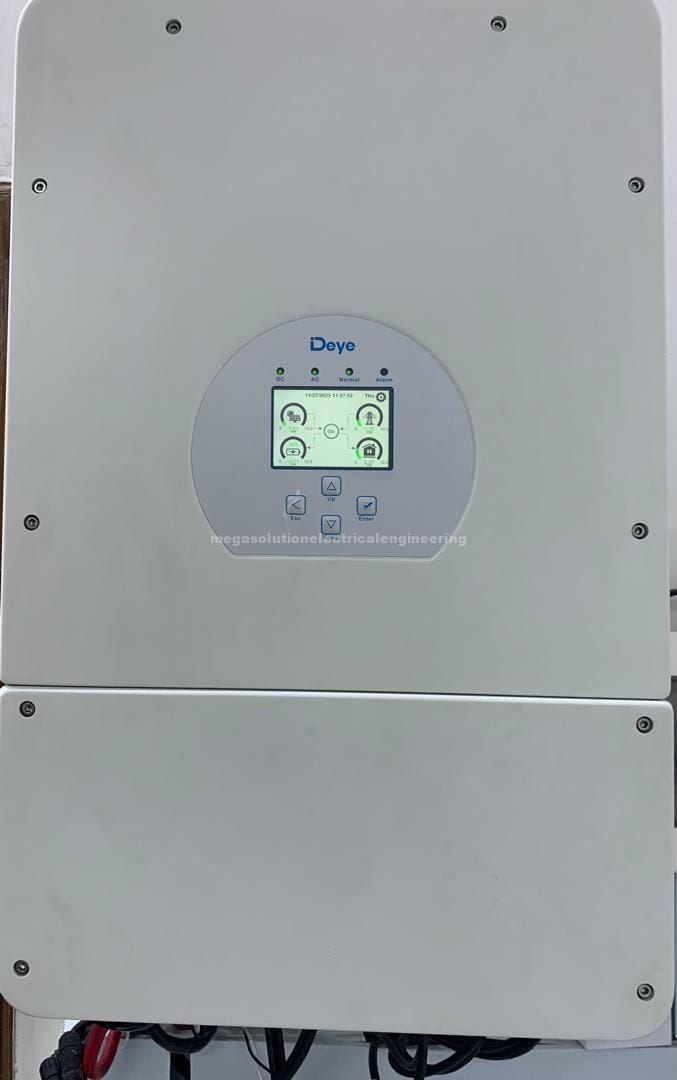

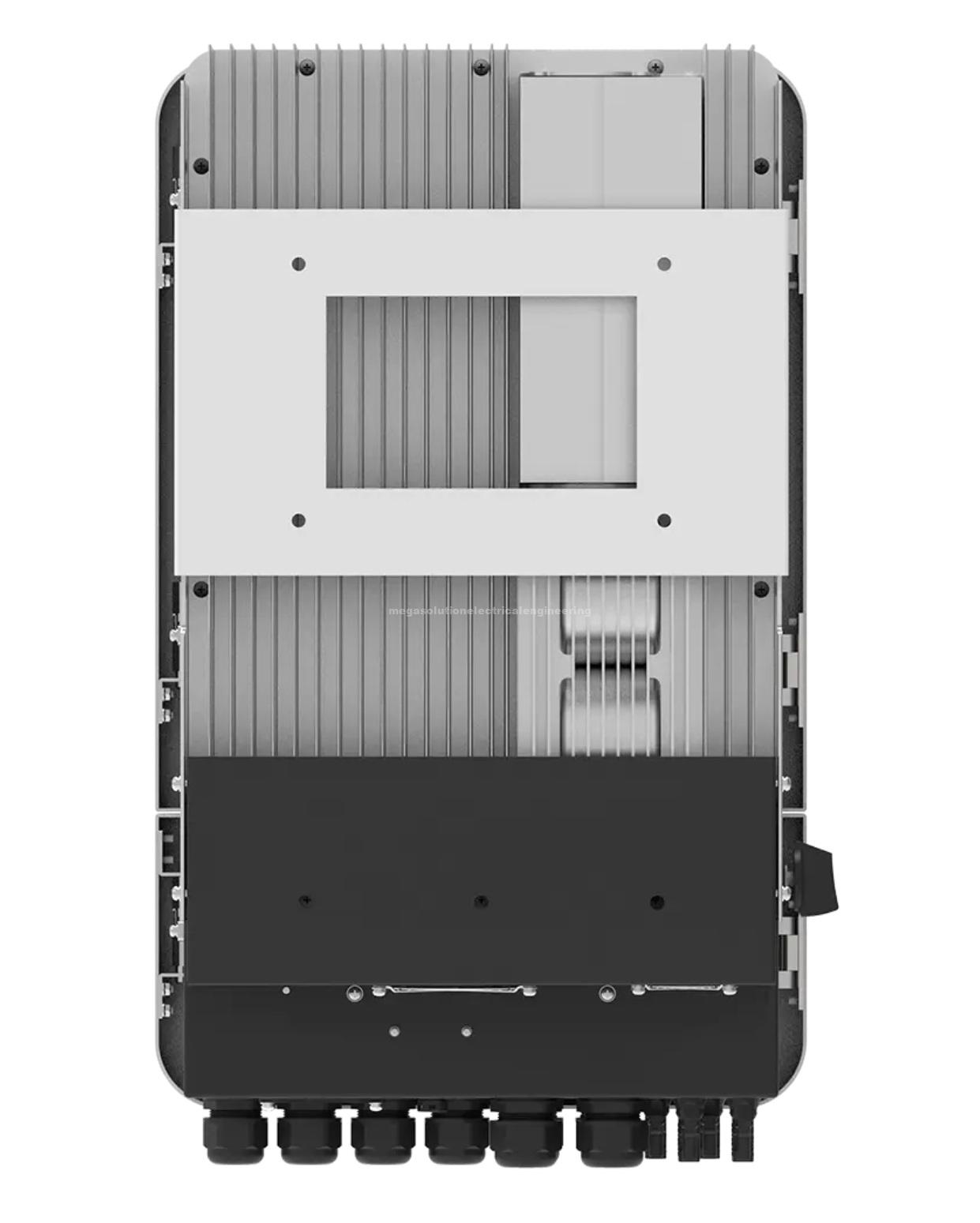

Deye hybrid Solar inverter
The Deye hybrid inverter provides reliable power management for solar and battery systems. You can use it in homes, businesses or backup applications where stable energy supply is needed. It combines PV input, battery connection and AC grid power in one unit which reduces installation complexity. The inverter supports both lead acid and lithium batteries and switches power automatically when needed. It operates with high efficiency and includes built in protection features. The front display allows clear monitoring of power flow, load status and battery level. With multiple size options available, you can select the model that matches your installation capacity.
The inverter includes an in built MPPT solar charger and battery management controller, so you do not need separate charge controllers during installation.
You can install it on wall brackets. Moreover, the IP65 rating protects it against dust and water, so it suits both indoor and covered outdoor locations. Additionally, it supports remote monitoring using compatible platforms.
For safety, the unit includes timers for shutdown and warning signals for faults. Furthermore, it runs quietly and manages charging intelligently to extend battery life.
As a result, it’s suitable for residential backup systems, office loads, shops and hybrid solar installations
Key Benefits for Customers
• 6 time periods for battery charging/discharging
• Handles both grid and solar input for full hybrid control.
• Compatible with battery storage to supply during outages.
• Works with lithium or lead acid batteries.
• Strong safety rating with IP65 enclosure.
• Easy wall mounting and simple wiring.
• Smart charging improves battery lifespan.
• Monitoring through digital display and external platforms.
• Suits homes, offices and backup systems.
| Feature | Specification |
|---|---|
| Product type | Hybrid inverter |
| Protection rating | IP65 |
| Operating temperature | 40°C to +60°C, derating above 45°C |
| Inverter topology | Non isolated |
| System support | Solar, grid and battery hybrid |
| Battery type | Lead acid or Lithium ion |
| Battery voltage range | 48 VDC (40 to 60 V) |
| Battery max. charge/discharge current | 135 A |
| AC output voltage | 230 VAC, L/N/PE |
| AC frequency | 50 Hz or 60 Hz |
| Grid input current | 26.1 A AC |
| Grid output current | 28.8 A AC |
| Backup apparent output | 12000 VA for 10 seconds |
| Max. continuous AC output | 6600 VA |
| Power factor | >0.99 |
| PV max. input voltage | 500 VDC |
| MPPT voltage range | 150 to 425 VDC |
| Max. PV input current per tracker | 18 A + 18 A |
| Max. short circuit current | 27.4 A + 27.4 A |
| Installation | Wall mounted |
| Display | User interface with status indicators |
| Safety delay | 5 minutes required before opening for maintenance |
