The difference between RCDs and MCBs

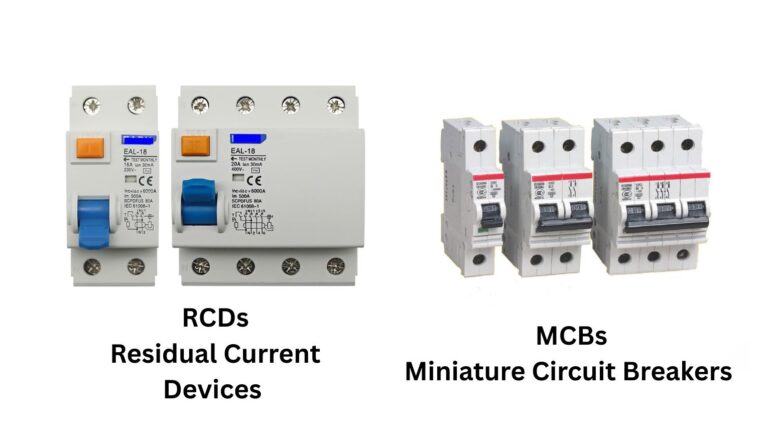

Residual Current Devices RCDs and Miniature Circuit Breakers MCBs

Why these devices matter?

You rely on electrical protection to keep risk low in your home. Naturally, you need to protect yourself. However, you also need to protect your wiring. Many people mix up Residual Current Devices (RCDs) and Miniature Circuit Breakers (MCBs). In reality, they do very different jobs. Furthermore, these roles never overlap. As a result, you need both devices in every modern installation.

How a Miniature Circuit Breaker MCB works

A Miniature Circuit Breaker (MCB) cuts power when the current rises above a safe level. Typically, you may see ratings like 6A, 20A, and 32A. Generally, you fit lower ratings for lighting (8-10 bulbs with 100w), while higher ratings are used for cookers or showers.

So, an MCB gives you double protection – it’s like having a safety net for your wiring. First, it has a thermal element that kicks in when there’s an overload, and then there’s a magnetic element that’s super quick to respond to short circuits. Together, they keep your wiring from overheating and reduce the risk of insulation failure – pretty neat, right?

But here’s the thing: an MCB won’t protect you from electric shock. It only reacts to high fault currents, so if you touch a live conductor and the leakage current is low, the MCB won’t trip. That’s why it’s super important to be careful around electricity.

How a Residual Current Device RCD works

So, a Residual Current Device (RCD) is like a vigilant guardian – it constantly checks the incoming and outgoing current, and if they don’t match, it knows there’s earth leakage and cuts the power instantly. This lightning-fast response is what protects you from electric shock. A 30 mA device, for example, trips before the current through your body reaches a dangerous level.

You typically use RCDs in areas where the risk is higher, like bathrooms or outdoor equipment. You can have a fixed RCD installed in your consumer unit, or use a portable one for tools and temporary setups – it’s a simple but effective way to add an extra layer of protection.

Key differences between RCDs and MCBs

You can compare both the RCDs and MCBs devices in a simple way. Here is a clear view.

You can now see the core point. An MCB will not trip for a small leakage fault. An RCD will cut power instantly.

Why you need both devices?

So, why do you need both? Well, an MCB handles overloads and short circuits, while an RCD handles earth leakage. They’re like two pieces of a puzzle – each one protects against a different type of fault, so you get full protection only when they’re both there.
Using both devices means you’re less likely to have cable fires or get injured or electrocuted. It’s like having a solid safety net in your home – you can feel more confident and secure.

Using an RCBO

There’s also a handy option called an RCBO – it’s a single device that combines overcurrent protection and earth leakage protection in one unit. This means you save space in your consumer unit and simplify your circuit layout, making it a neat and efficient solution.

What the rules require

In the UK, wiring standards typically require 30 mA RCD or RCBO protection for many circuits, especially in high-risk areas. If you’re unsure about your installation, it’s best to consult a qualified electrician – they can check it out and give you peace of mind.

Routine checks

It’s a good idea to test your RCDs regularly – try pressing the test button a few times a year. The device should trip straight away. If it doesn’t, it’s time to call an expert electrician to take a look.

Final points

RCDs save lives, while MCBs protect your wiring – they’re both crucial, but serve different purposes. Don’t think one can replace the other; your home really needs both to stay safe.
