Generator Maintenance Schedule: Complete Service Guide

The Complete Generator Maintenance Schedule for Diesel and Petrol Generators: Weekly, Monthly, and Annual Service Tasks

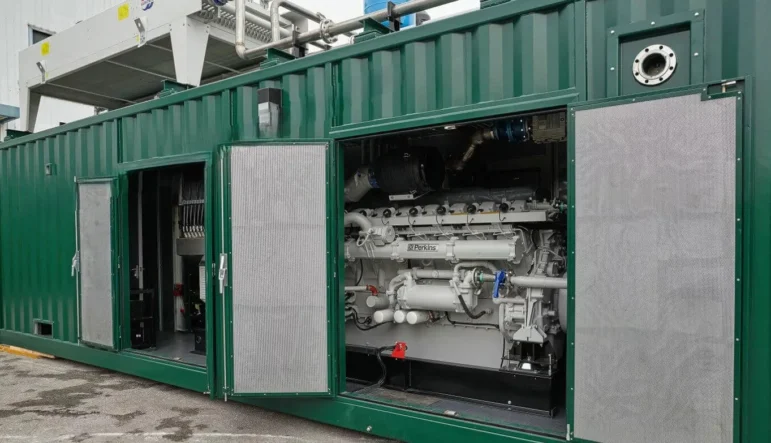

The Four Maintenance Intervals Every Generator Maintenance Schedule Must Include

A professional generator maintenance schedule follows four distinct service intervals. Each interval has specific tasks that must be completed regardless of whether the generator appears to be functioning normally. Many developing faults produce no visible symptoms until they cause sudden failure.

Weekly Generator Maintenance Schedule Tasks

Weekly checks take less than fifteen minutes but catch the developing faults that cause the most expensive failures.

Check the fuel level and refill if necessary. Fuel running low is not simply an inconvenience. A generator that runs out of fuel while under load can draw air into the fuel system, creating an airlock that requires bleeding before the generator will restart. In a standby application this means the generator fails to restore power when it is most needed.

Inspect the generator visually for oil leaks, coolant leaks, and fuel leaks. A small leak visible during a weekly check becomes a major fault if left unattended for a month. Oil leaks around gaskets and seals, coolant stains beneath the radiator, and fuel seepage around connections all require immediate attention.

Check the battery charger indicator to confirm the standby battery is receiving charge. A battery that has been slowly discharging for several weeks shows normal voltage on a simple meter but fails immediately under the load of cranking the engine.

Listen for unusual sounds during the weekly run test. Every generator should be run under load for a minimum of thirty minutes every week. This keeps the engine lubricated, exercises the battery, burns off moisture in the exhaust system, and allows the technician to hear developing faults before they cause failure.

Record the hour meter reading weekly. Tracking operating hours is the foundation of any generator maintenance schedule. Without accurate hour meter records maintenance tasks are performed either too early, wasting money, or too late, risking failure.

Monthly Generator Maintenance Schedule Tasks

Monthly checks go deeper than weekly visual inspections and require basic tools and test equipment.

Check the engine oil level using the dipstick and inspect the oil condition. Fresh oil is amber coloured and translucent. Oil that has turned black indicates combustion contamination from blow-by. Oil that appears milky white indicates coolant contamination from a failing head gasket or cracked cylinder head. Either condition requires immediate oil change and further investigation before the generator is returned to service.

Test the battery voltage using a multimeter. A fully charged 12 volt generator battery reads between 12.6 and 12.8 volts at rest. A reading below 12.2 volts indicates a partially discharged battery. A reading below 11.8 volts indicates a battery that has either failed or been deeply discharged and may have sustained permanent capacity loss.

Check the coolant level in the expansion tank and inspect the coolant condition. Coolant that appears rusty, oily, or contains visible particles indicates contamination requiring immediate system investigation. Additionally, test coolant concentration using a refractometer, which is a handheld optical instrument that measures the ratio of antifreeze to water in the coolant mixture. Correct concentration is typically 50% antifreeze and 50% distilled water, providing freeze protection to minus 37 degrees Celsius and boil over protection to 106 degrees Celsius.

Inspect the air filter condition

A visually dirty air filter restricts airflow to the engine, causing rich running, increased fuel consumption, black exhaust smoke, and potential engine damage. Clean reusable filters with low pressure compressed air directed from the clean side outward. Replace disposable filters immediately without attempting to clean them.

Test the automatic start function by simulating a mains failure. On a generator fitted with an automatic mains failure system, disconnecting the mains supply should trigger automatic generator start within the programmed time delay, typically between 5 and 30 seconds. Confirm the generator starts, reaches correct voltage and frequency, and the transfer switch operates correctly before reconnecting mains power.

Every 250 Hours: Intermediate Generator Maintenance Schedule Service

The 250 hour service is the first level of scheduled mechanical maintenance in any generator maintenance schedule and represents a significant step beyond basic checks.

Change the engine oil and replace the oil filter. Used oil contains combustion acids, metal particles from normal engine wear, and carbon deposits that accelerate further wear if left in service beyond their useful life. Always use the oil grade specified by the generator manufacturer. Common grades for diesel generators include SAE 15W-40 for standard operating temperatures and SAE 10W-30 for cooler conditions.

Replace the fuel filters. Diesel fuel contains microscopic contaminants and water that accumulate in fuel filters over time. A blocked fuel filter restricts fuel flow, causing power loss, difficult starting, and injector damage. Replace both primary and secondary fuel filters at every 250 hour service regardless of apparent condition.

Inspect and clean the fuel tank interior using a flashlight. Look for water accumulation at the bottom of the tank, sediment deposits, and microbial growth which appears as a dark slimy deposit and is common in diesel tanks in humid environments. Water in the fuel tank causes injector corrosion and microbial contamination causes fuel filter blockage.

Check and adjust valve clearances on engines that specify this procedure. Incorrect valve clearance causes compression loss, poor performance, and increased fuel consumption. The correct clearance values are specified in the generator service manual and vary between engine types and models.

Inspect the cooling system hoses for cracks, swelling, and softness. A hose that feels soft and spongy has begun to deteriorate internally and will fail without further external warning. Replace any hose showing these symptoms immediately.

Every 500 Hours: Major Generator Maintenance Schedule Service

The 500 hour service is a comprehensive overhaul of all generator systems and represents the most significant scheduled maintenance intervention in any generator maintenance schedule.

Replace the engine coolant completely. Even if coolant appears clean its corrosion inhibitor additives deplete over time, allowing internal corrosion to begin. Green coolant based on inorganic additive technology requires replacement every 500 hours or two years. Extended life coolant based on organic acid technology lasts up to 6,000 hours or five years.

Inspect and test the alternator insulation resistance using a megohmmeter, commonly known as a megger. Apply 500 volts DC between the alternator windings and earth and measure the insulation resistance. A healthy alternator shows insulation resistance above 1 megohm. Values below 1 megohm indicate insulation degradation requiring immediate investigation and repair before the generator is returned to service.

Inspect the coupling between the engine and generator. Check flexible disc packs for cracks and rubber elements for hardening, cracking, and oil contamination. A deteriorating coupling transmits increasing levels of vibration to the generator shaft and bearings, accelerating wear throughout the drivetrain.

Perform a full load bank test. A load bank is a portable resistive load used to test generator performance at its rated output. Running the generator at 100% rated load for a minimum of two hours confirms that all systems perform correctly under real operating conditions, burns off any wet stacking deposits in the exhaust system, and provides a baseline performance measurement for comparison at future services.

Inspect and test all protective shutdown functions. Confirm that the low oil pressure shutdown, high coolant temperature shutdown, overspeed shutdown, and overcurrent protection all operate correctly. A protective function that fails to operate when needed allows a fault condition to cause catastrophic engine damage.

Building Your Generator Maintenance Schedule Log

Every generator maintenance schedule activity must be recorded in a maintenance log. This is not bureaucratic formality. It is a practical diagnostic tool.

A complete maintenance log records the date and hour meter reading at every service, the tasks performed, the parts replaced, the oil grade and quantity used, the coolant concentration measured, the battery voltage recorded, any faults found and the corrective action taken, and the name of the technician who performed the work.

Over time the maintenance log reveals patterns that predict developing faults. An oil consumption rate that is gradually increasing indicates developing piston ring or valve stem seal wear. A battery voltage that requires more frequent charging indicates a battery approaching the end of its service life. A coolant level that requires regular topping up indicates a slow leak that has not yet become visible externally.

These patterns allow planned maintenance intervention before failure occurs. That is the difference between a generator maintenance schedule and a breakdown response programme.

Engine Oil: Selection, Testing and Change Intervals

Engine oil is a critical component of every generator maintenance schedule. It does more than lubricate moving parts. It cools internal components that coolant cannot reach, cleans combustion deposits from cylinder walls and bearings, protects metal surfaces from corrosion, and seals the microscopic gap between piston rings and cylinder walls to maintain compression.

A generator running on degraded, contaminated, or incorrect oil is sustaining internal damage with every revolution of the crankshaft. That damage accumulates silently until it causes sudden catastrophic failure. Correct oil selection and disciplined change intervals are therefore not routine housekeeping. They are fundamental engine protection.

Understanding Oil Viscosity Grades

Oil viscosity is its resistance to flow. The Society of Automotive Engineers, commonly known as SAE, developed the viscosity grading system used globally to classify engine oils.

A multigrade oil such as SAE 15W-40 has two viscosity ratings. The number before the W, which stands for winter, indicates the oil’s flow characteristics at cold temperatures. A lower number means better cold flow. The number after the W indicates viscosity at normal operating temperature. A higher number means a thicker oil film at operating temperature.

Selecting the correct viscosity grade for your operating environment is critical. Using oil that is too thin at operating temperature reduces the oil film thickness between bearing surfaces, increasing wear. Using oil that is too thick in cold conditions prevents adequate oil flow during startup, when the majority of engine wear occurs.

The following viscosity grades apply to most generator applications globally:

SAE 15W-40 is the standard recommendation for diesel generators operating in ambient temperatures above 0 degrees Celsius. It provides adequate cold start flow and robust high temperature film strength under load.

SAE 10W-30 is recommended for diesel generators operating in ambient temperatures between minus 15 and plus 40 degrees Celsius. It offers better cold flow than 15W-40 while maintaining adequate high temperature protection.

SAE 5W-30 is recommended for generators operating in cold climates where ambient temperatures regularly fall below minus 15 degrees Celsius. Its superior cold flow characteristics ensure adequate lubrication during cold starts.

SAE 30 monograde oil is suitable for generators operating in consistently hot environments where ambient temperatures remain above 15 degrees Celsius throughout the year. However, monograde oils should only be used where the manufacturer specifically recommends them.

Always verify the viscosity grade specified in your generator’s service manual before selecting oil. Manufacturer specifications override general guidelines.

Oil Types and Their Specific Applications

Beyond viscosity grade, oil type selection significantly affects engine protection and service life.

Mineral oil is refined directly from crude petroleum. It provides adequate lubrication for older generator engines designed before synthetic oils became widely available. However, mineral oil has lower oxidation resistance than synthetic alternatives, meaning it degrades more quickly under the high temperatures and pressures of generator operation. Mineral oil requires more frequent change intervals as a result.

Semi-synthetic oil blends mineral base stocks with synthetic components to improve oxidation resistance, low temperature flow, and high temperature film strength compared to pure mineral oil. It represents a cost effective middle ground between mineral and full synthetic oils for many generator applications.

Full synthetic oil is engineered from chemically modified base stocks to provide superior performance across a wider temperature range than mineral or semi-synthetic alternatives. It offers better oxidation resistance, better low temperature flow, better high temperature film strength, and better detergency than mineral oil. Full synthetic oil extends drain intervals on engines where the manufacturer approves its use. However, it costs significantly more than mineral oil and its use must be confirmed against manufacturer recommendations.

Reading Oil Condition During Maintenance

Oil condition assessment is an essential part of every generator maintenance schedule. Every technician performing generator maintenance should know how to read oil condition accurately.

Normal oil condition shows amber to light brown colour with a smooth texture and no visible particles when rubbed between the fingers. This indicates oil that is performing correctly and is within its useful service life.

Black oil indicates combustion contamination. Combustion gases passing the piston rings carry carbon particles into the crankcase oil. Some darkening of oil colour is normal in diesel engines, but oil that turns completely black within the first 50 hours of a new oil change indicates excessive blow-by from worn piston rings or cylinder walls requiring investigation.

Milky or grey coloured oil indicates coolant contamination. Coolant entering the engine oil through a failing head gasket or cracked cylinder head creates an emulsion that has severely reduced lubricating properties. An engine running on coolant contaminated oil sustains bearing damage within hours. Milky oil requires immediate shutdown and full investigation before the generator is returned to service.

Gritty oil that feels like fine sand between the fingers indicates metal particle contamination from accelerated internal wear. This is a serious finding requiring immediate oil analysis and internal engine inspection. Metal particles in oil indicate that bearing surfaces, cylinder walls, or gear teeth are wearing at an abnormal rate.

Fuel diluted oil has a thin consistency and a distinct fuel smell. Fuel entering the crankcase through worn injectors, incorrect injection timing, or extended idling thins the oil and reduces its film strength, causing bearing wear. Fuel dilution is confirmed by oil analysis and requires injector inspection and service.

Oil Analysis: The Early Warning System

Oil analysis is a laboratory testing procedure that reveals developing engine problems weeks or months before they cause failure. A small oil sample taken during each oil change is sent to a laboratory for analysis. The laboratory measures:

Metal particle content and particle type. Iron particles indicate cylinder wall or piston ring wear. Copper particles indicate bearing wear. Aluminium particles indicate piston wear. Chromium particles indicate piston ring wear. Each metal type points to a specific component requiring investigation.

Viscosity at operating temperature confirms whether the oil in service matches the specified grade and whether fuel or coolant dilution has altered its viscosity.

Total base number, commonly abbreviated TBN, measures the oil’s remaining ability to neutralise combustion acids. A TBN that has fallen below 50% of the new oil value indicates the oil has reached the end of its useful service life regardless of the hours in service.

Water content confirms whether coolant contamination is occurring. Even small amounts of water in engine oil cause corrosion and accelerate bearing wear significantly.

Oil analysis costs a small fraction of the repair bills it prevents. Mega Solution Electrical Engineering Ltd recommends oil analysis at every oil change for industrial generator installations where unplanned downtime carries significant operational costs.

Oil Change Procedure

Correct oil change procedure is as important as correct oil selection within any generator maintenance schedule. An incorrectly performed oil change can introduce more contamination than it removes.

Run the generator for fifteen minutes before draining the oil. Warm oil flows more freely than cold oil and carries more suspended contaminants out of the engine during draining. Draining cold oil leaves a significant proportion of contaminated oil clinging to internal surfaces.

Drain the oil completely through the drain plug. Allow a minimum of ten minutes for complete drainage. Partial drainage leaves contaminated oil mixed with the fresh charge, reducing the effectiveness of the change.

Replace the oil filter before refilling. An old oil filter contains approximately half a litre of used oil that will immediately contaminate the fresh oil charge if the filter is not replaced. Always use a manufacturer specified replacement filter. Generic filters may not match the correct bypass pressure specification for your engine.

Fill with the correct oil grade and quantity as specified in the service manual. Overfilling is as damaging as underfilling. Excess oil is forced past seals and into the air intake system, causing blue smoke, oil consumption, and potential engine runaway on diesel engines.

Check the oil level on the dipstick after filling. The correct level is between the minimum and maximum marks on the dipstick, ideally at the maximum mark. Start the engine and run for two minutes, then shut down and recheck the level. The oil filter fills during the first run, slightly reducing the level in the sump.

Record the oil change in the maintenance log including the date, hour meter reading, oil grade used, quantity added, and filter part number.

Air Filter Inspection and Replacement

Air filter maintenance is a straightforward but critical component of every generator maintenance schedule. The air filter is the engine’s first line of defence against the particles, dust, and debris that cause premature cylinder and bearing wear. A generator engine breathes enormous volumes of air during operation. A 100 kW diesel generator consumes approximately 400 cubic metres of air every hour at full load. Every cubic metre of unfiltered air that reaches the cylinders carries abrasive particles that score cylinder walls, wear piston rings, and contaminate engine oil.

A clean, correctly fitted air filter costs a fraction of the engine rebuild that a failed or bypassed filter causes.

Air Filtration System Components

Modern generator air filtration systems consist of multiple stages working together to remove progressively finer particles from the incoming air.

The pre-cleaner is the first stage of filtration on many industrial generators. It uses centrifugal action to separate large particles and water droplets from the incoming air before they reach the primary filter. Pre-cleaners significantly extend primary filter service life in dusty environments. They require periodic emptying of accumulated dust without replacing the filter element.

The primary filter element is the main filtration stage. It removes fine particles down to approximately 5 microns, which is five thousandths of a millimetre, from the incoming air stream. Primary filter elements are either dry paper elements or oil wetted foam elements depending on the generator design.

The safety filter is a secondary filter element fitted behind the primary filter on some industrial generators as a last line of defence against contamination during primary filter servicing. The safety filter should never be cleaned. It must be replaced at every second primary filter replacement.

Air Filter Inspection Procedure

Inspect the air filter at every monthly maintenance check and at every 250 hour service interval within your generator maintenance schedule.

Remove the filter element carefully to avoid dislodging accumulated dust into the intake system. Any dust that falls into the intake during filter removal bypasses the filtration system entirely and reaches the engine directly.

Hold the filter element up to a light source and look through it. A serviceable filter allows light to pass through the filter media relatively evenly. A filter that blocks light completely or shows dark patches across its surface is approaching the end of its service life and should be replaced.

Inspect the filter element for physical damage including tears, holes, and collapsed pleats. A damaged filter element provides no filtration at the point of damage. All particles entering through the damage reach the engine unfiltered. Replace any physically damaged filter element immediately regardless of its service hours.

Check the filter housing and sealing surfaces for damage and debris. A filter housing that is cracked or has a damaged sealing surface allows unfiltered air to bypass the filter element entirely. Clean the housing interior with a damp cloth before installing the replacement filter.

Cleaning Reusable Filter Elements

Some generator air filter elements are designed for cleaning and reuse. However, cleaning has limitations that every technician must understand.

Clean reusable filter elements using low pressure compressed air directed from the clean inside surface outward through the filter media. Never direct compressed air from the dirty outside surface inward, as this drives accumulated particles deeper into the filter media rather than removing them.

Never wash paper filter elements with water or cleaning solvents. Water and solvents damage the filter media and destroy its filtration efficiency. A washed paper filter element looks clean but provides inadequate filtration.

Never use a wire brush or abrasive tool on a filter element. Physical cleaning methods damage the filter media irreparably.

A reusable filter element has a finite number of cleaning cycles before its filtration efficiency degrades below acceptable levels. Replace reusable filter elements after a maximum of six cleaning cycles or when the filter media shows any physical damage, regardless of the number of cleaning cycles completed.

Air Filter Replacement Intervals

Standard operating environments with moderate dust levels require primary filter replacement every 500 hours or twelve months, whichever comes first.

Dusty environments including construction sites, quarries, agricultural operations, and areas with high ambient dust levels require primary filter replacement every 250 hours or six months. In extremely dusty environments replacement every 100 hours may be necessary.

High humidity environments promote moisture accumulation in the filter media, reducing airflow and potentially allowing microbial growth. Inspect filters more frequently in high humidity conditions and replace at the first sign of moisture saturation.

Air Filter Restriction Indicators

Many industrial generators are fitted with air filter restriction indicators. These devices measure the pressure drop across the air filter and provide a visual or electronic signal when the filter restriction reaches the maximum allowable level.

A visual restriction indicator typically uses a red indicator that appears in a window on the indicator body when the filter requires attention. The indicator must be reset manually after filter replacement.

An electronic restriction indicator sends a signal to the generator control module, triggering a warning alarm on the control panel display. Some systems automatically log the alarm with a timestamp in the control module fault history.

Check the restriction indicator at every weekly inspection. A generator running with a triggered restriction indicator is operating with reduced airflow, increased fuel consumption, higher exhaust temperatures, and accelerated engine wear.

Cooling System Maintenance and Coolant Specifications

Overheating is the single most common cause of catastrophic generator failure globally. It destroys head gaskets, warps cylinder heads, seizes bearings, and melts alternator windings. None of these failures give adequate warning before they occur. By the time an overheating generator triggers its high temperature shutdown alarm, damage is frequently already underway.

Effective cooling system maintenance prevents overheating entirely. It costs a fraction of the repairs that overheating causes.

How The Generator Cooling System Works

The cooling system maintains engine temperature within a precise operating range. Most diesel generators operate correctly between 82 and 95 degrees Celsius coolant temperature. Below this range the engine runs inefficiently, consuming more fuel and producing more emissions. Above this range component damage begins progressively.

The water pump, driven by a belt from the engine crankshaft, circulates coolant continuously through passages in the engine block and cylinder head. The coolant absorbs heat from combustion and carries it to the radiator. The radiator dissipates heat into the surrounding air through its network of thin metal fins and tubes. The cooling fan draws air through the radiator to accelerate heat dissipation.

The thermostat regulates coolant flow to maintain temperature within the correct operating range. When the engine is cold the thermostat closes, preventing coolant from flowing to the radiator and allowing the engine to reach operating temperature quickly. When coolant temperature reaches the thermostat opening temperature, typically between 82 and 88 degrees Celsius, the thermostat opens and allows full coolant circulation through the radiator.

Coolant Selection and Specification

Using the correct coolant is as important as maintaining the correct coolant level. Plain water should never be used alone in a generator cooling system. Water alone causes internal corrosion, has a higher freezing point than coolant mixture, has a lower boiling point than coolant mixture, and contains none of the corrosion inhibitor additives that protect aluminium engine components.

Two main coolant technologies are used in generator applications globally.

Green coolant based on inorganic additive technology, commonly abbreviated IAT, provides corrosion protection through inorganic inhibitors including silicates, phosphates, and nitrites. IAT coolant requires replacement every two years or 240 operating hours because its inhibitor additives deplete relatively quickly. Mixing IAT coolant with other coolant types causes chemical reactions that destroy corrosion protection and can cause rapid radiator and water pump damage.

Extended life coolant based on organic acid technology, commonly abbreviated OAT, uses organic acid inhibitors that deplete much more slowly than inorganic inhibitors. OAT coolant lasts up to five years or 6,000 operating hours before replacement is required. It must not be mixed with IAT coolant.

Always use coolant mixed to the manufacturer’s specified concentration. A 50% antifreeze and 50% distilled water mixture is standard for most applications, providing freeze protection to minus 37 degrees Celsius and boil over protection to 106 degrees Celsius. Use distilled water rather than tap water for mixing. Tap water contains minerals that deposit on internal cooling system surfaces and reduce heat transfer efficiency over time.

Coolant Concentration Testing

Test coolant concentration using a refractometer at every monthly maintenance check. A refractometer is a small handheld optical instrument that measures the refractive index of the coolant sample and converts it to a concentration reading and freeze protection temperature.

Place two drops of coolant on the refractometer prism, close the cover plate, and read the scale through the eyepiece in natural light. Compare the reading against the manufacturer’s specified concentration range. Coolant that is too dilute provides inadequate freeze and boil over protection. Coolant that is too concentrated has reduced heat transfer efficiency.

Replace coolant that is outside the specified concentration range with correctly mixed fresh coolant rather than attempting to adjust concentration by adding antifreeze or water alone.

Thermostat Testing and Replacement

The thermostat is one of the most commonly failed cooling system components globally yet one of the least frequently inspected during routine generator repair and maintenance.

A thermostat that is stuck open causes the engine to run below its correct operating temperature. The engine takes longer to warm up, runs less efficiently, consumes more fuel, and produces more exhaust emissions. Cold running also prevents engine oil from reaching its correct operating viscosity, increasing internal wear.

A thermostat that is stuck closed prevents coolant from flowing to the radiator. Engine temperature rises rapidly to the point where the high temperature shutdown activates. If the shutdown fails to operate the engine overheats with potentially catastrophic consequences.

Test the thermostat by removing it from the engine and suspending it in a container of water heated on a heat source. Use a thermometer to monitor water temperature. The thermostat should begin to open within 5 degrees Celsius of its rated opening temperature, which is stamped on the thermostat body, and should be fully open at approximately 15 degrees above its rated opening temperature. A thermostat that opens at the wrong temperature or fails to open fully requires replacement.

Replace the thermostat as a matter of course at every major 500 hour service regardless of its apparent condition. A thermostat costs a small fraction of the repair bill that a stuck closed thermostat causes.

Water Pump Inspection

The water pump is a centrifugal pump driven by a belt from the engine crankshaft. It circulates coolant through the entire cooling system and is a critical component whose failure causes rapid engine overheating.

Water pump failure typically occurs in one of three ways. Shaft seal failure allows coolant to leak from around the pump shaft, visible as coolant staining below the pump body. Bearing failure causes a grinding or rumbling noise from the pump area that increases with engine speed. Impeller failure, where the internal pump vanes corrode or separate from the shaft, causes loss of coolant circulation without any external leakage, making it the most difficult failure mode to detect without coolant temperature monitoring.

Inspect the water pump at every 500 hour service. Check for shaft seal leakage, bearing noise, and impeller condition. Replace the water pump at the first sign of any of these failure modes. Additionally, replace the water pump as a precautionary measure at every major overhaul regardless of condition, as a failed water pump causes damage that far exceeds the cost of the pump itself.

Radiator Maintenance

The radiator transfers heat from the coolant to the surrounding air through a network of thin aluminium or copper fins and tubes. Blocked or damaged radiator fins significantly reduce cooling efficiency.

Clean the radiator fins at every 250 hour service using low pressure compressed air or a soft brush directed from the clean engine side outward through the fins. Never use high pressure water or air on radiator fins as this bends the delicate fins and permanently reduces airflow through the radiator.

Inspect the radiator for external corrosion, physical damage, and coolant leaks at every service. Small coolant leaks from the radiator core leave white or green mineral deposits around the leak point. These deposits indicate that coolant is evaporating after leaking, concentrating its mineral content at the leak point. Address radiator leaks immediately as they worsen progressively and can cause sudden coolant loss and overheating.

Check the radiator cap condition and pressure rating at every annual service. The radiator cap maintains system pressure at the manufacturer’s specified value, typically between 0.9 and 1.1 bar. A cap that fails to maintain correct pressure reduces the coolant boiling point, increasing the risk of localised boiling and overheating at hot spots within the engine. Replace the radiator cap every two years regardless of apparent condition.

Battery Maintenance and State of Health Testing

Generator starting battery failure is the single most common cause of standby generator starting failure globally. A generator that fails to start when grid power fails has one job and has failed at it completely. Battery maintenance prevents this failure with straightforward procedures that take less than thirty minutes per month.

Understanding Battery State of Charge Versus State of Health

These two concepts are frequently confused and the confusion causes expensive diagnostic errors globally.

State of charge indicates how much energy is currently stored in the battery. A fully charged battery at 100% state of charge has all the energy available that its current condition allows. A discharged battery can be recharged to 100% state of charge regardless of its age or condition.

State of health indicates the battery’s current capacity relative to its original new condition. A new battery at 100% state of health can deliver its full rated capacity. A battery at 50% state of health can only deliver half its rated capacity regardless of how fully it is charged.

This distinction has critical practical implications. A battery at 50% state of health shows normal open circuit voltage when fully charged, typically 12.6 to 12.8 volts on a 12 volt system. It passes a simple voltage test. However, when the starter motor draws its full cranking current, typically between 200 and 600 amperes depending on engine size, the degraded battery cannot maintain adequate voltage and the starter motor cranks too slowly to start the engine.

This is why many generator starting failures that appear to be starter motor or fuel system problems are actually battery state of health failures that a simple voltage test has missed.

Battery Testing Procedures

Three tests are required for complete battery assessment. Voltage testing alone is insufficient.

Open circuit voltage testing measures battery voltage with no load connected after the battery has rested for a minimum of two hours since its last charge or discharge. A fully charged 12 volt lead acid battery reads between 12.6 and 12.8 volts. Between 12.4 and 12.6 volts indicates approximately 75% state of charge. Between 12.2 and 12.4 volts indicates approximately 50% state of charge. Below 12.2 volts indicates a significantly discharged battery requiring charging before further assessment.

Load voltage testing applies a controlled load to the battery, typically half the battery’s cold cranking ampere rating, for fifteen seconds while monitoring voltage. A healthy battery maintains voltage above 9.6 volts on a 12 volt system throughout the fifteen second test period. Voltage that drops below 9.6 volts indicates a battery with insufficient capacity for reliable engine starting.

Conductance testing uses a dedicated battery analyser that measures the battery’s internal conductance, which is its ability to pass current, as an indicator of plate condition and state of health. Conductance testing is the most accurate non-invasive method for assessing battery state of health and can identify a failing battery before it causes a starting failure. Conductance testing takes less than thirty seconds and requires no battery disconnection.

Battery Types Used In Generator Applications

Different battery technologies have different maintenance requirements and performance characteristics. Selecting and maintaining the correct battery type for your generator application directly affects starting reliability.

Flooded lead acid batteries are the traditional technology requiring periodic electrolyte level checks and topping up with distilled water. They produce hydrogen gas during charging and require ventilation to prevent explosive gas accumulation. They have the lowest initial cost but require the most maintenance of any battery type.

Valve regulated lead acid batteries, commonly abbreviated VRLA, include both absorbed glass mat and gel cell variants. They require no electrolyte maintenance and can be installed in any orientation. However they are significantly more sensitive to overcharging than flooded batteries. An overcharging VRLA battery experiences accelerated plate corrosion and potential thermal runaway, which is a self-reinforcing cycle of increasing temperature and increasing charge current acceptance that can destroy the battery and cause fire.

Absorbed glass mat batteries, commonly abbreviated AGM, offer superior cold cranking performance, faster recharge capability, and better vibration resistance than standard lead acid batteries. They are increasingly specified for generator starting applications globally where reliable starting under all conditions is essential.

Float Charger Maintenance

The float charger maintains the starting battery at full charge between generator starting events. Float charger condition is critical for both battery longevity and starting reliability yet it is one of the most neglected components in generator maintenance globally.

An undercharging float charger allows the battery to gradually self-discharge between starting events. Over time the repeated partial discharge and recharge cycles cause sulphation, which is the formation of hard lead sulphate crystals on the battery plates that permanently reduces capacity and eventually renders the battery unable to accept charge.

An overcharging float charger causes excessive gassing in flooded batteries, accelerating water loss and plate corrosion. In VRLA batteries overcharging causes thermal runaway with potentially serious consequences.

Test float charger output voltage monthly using a multimeter. Correct float charge voltage for a 12 volt lead acid battery is between 13.2 and 13.8 volts depending on battery type and ambient temperature. Values outside this range require charger adjustment or replacement.

Additionally, verify that the float charger incorporates temperature compensation. Battery charging voltage requirements decrease as temperature increases. A charger without temperature compensation overcharges batteries in hot conditions and undercharges them in cold conditions. Temperature compensated charging adjusts charge voltage by approximately 3 millivolts per cell per degree Celsius relative to a reference temperature of 20 degrees Celsius.

Battery Installation and Safety Requirements

Battery installation affects both performance and safety. Several requirements apply to all generator battery installations globally.

Install batteries in ventilated enclosures to prevent hydrogen gas accumulation from flooded battery charging. Hydrogen gas is explosive at concentrations above 4% in air. Even small battery installations produce sufficient hydrogen during charging to create an explosive atmosphere in an unventilated enclosure.

Protect battery terminals against accidental short circuit using insulated terminal covers or enclosed battery boxes. A short circuit across a large capacity battery causes an immediate high current arc that can cause severe burns, ignite surrounding materials, and destroy the battery.

Secure batteries against movement during generator operation. Generator vibration transmitted to an unsecured battery causes terminal damage and internal plate damage that shortens battery life significantly.

Route battery cables to avoid contact with hot surfaces, moving parts, and sharp edges. Battery cable insulation damaged by heat, abrasion, or cutting creates short circuit hazards that develop progressively and can cause fire.

Belt and Pulley Inspection and Replacement Intervals

Generator belts and pulleys are high wear components that fail progressively rather than suddenly. This progressive failure gives maintenance technicians the opportunity to identify and replace deteriorating belts before they cause unexpected generator shutdown. However, that opportunity only exists if belts and pulleys are inspected systematically at correct intervals.

Belt Types and Their Specific Functions

Three distinct belt types are used in generator drivetrains. Each has different inspection criteria, replacement intervals, and failure consequences.

V-belts have a trapezoidal cross section that wedges into matching grooves in the pulleys. They are used to drive the cooling fan, water pump, and alternator charging circuit on many generator designs. V-belt wear shows as glazing on the contact surfaces, cracking on the outer cover, fraying on the edges, and progressive stretching that eventually prevents correct tension adjustment.

Serpentine belts, also known as poly-V or multi-rib belts, are flat belts with multiple longitudinal ribs on their inner surface. They drive multiple accessories from a single belt and are more efficient than V-belts. However, wear occurs on the ribbed underside where it is not visible during a basic visual inspection. A serpentine belt wear gauge is required to measure rib depth and confirm serviceability.

Timing belts synchronise the crankshaft and camshaft rotation to ensure correct valve timing. Unlike accessory drive belts, timing belt failure causes immediate catastrophic engine damage on interference engines, where the pistons and valves share the same space at different points in the engine cycle. A timing belt that breaks while the engine is running allows pistons to collide with open valves, bending valves and potentially cracking pistons. The repair cost typically exceeds the value of the engine. Replace timing belts strictly according to the manufacturer’s interval regardless of apparent condition.

Belt Inspection Procedure

Inspect all belts at every 250 hour service with the generator shut down and isolated from all power sources.

Check V-belt tension using a belt tension gauge. Press the gauge against the belt at the midpoint of its longest free span and measure the deflection under a specified load. Compare against the manufacturer’s specified deflection value. A belt that deflects too much under the test load is undertensioned and will slip under load. A belt that deflects too little is overtensioned and places excessive load on bearing surfaces. Both conditions cause premature belt and bearing failure.

Inspect V-belt surfaces for glazing, which appears as a shiny hard surface on the belt sides, indicating slipping. Inspect for cracking on the outer cover and fraying on the edges. Any of these conditions indicates a belt requiring immediate replacement.

Check pulley groove condition by running a finger along the groove surfaces. Worn pulley grooves feel smooth and shallow rather than sharp and deep. A belt running in a worn groove makes contact at the wrong angle and wears at an accelerated rate regardless of the belt’s own condition. Replace worn pulleys before fitting new belts.

Inspect pulleys for alignment using a straight edge or laser alignment tool placed across the pulley faces. Misaligned pulleys cause uneven belt wear, increased noise, and reduced belt life. Correct misalignment by adjusting pulley positions according to the manufacturer’s alignment specification.

Belt Replacement Intervals

V-belts require replacement every 1,000 hours or two years regardless of apparent condition. Additionally, replace V-belts immediately at the first sign of glazing, cracking, fraying, or inability to achieve correct tension.

Serpentine belts require replacement every 2,000 hours or four years regardless of apparent condition, or immediately when rib depth measurement confirms wear beyond the manufacturer’s minimum specification.

Timing belts require replacement strictly at the manufacturer’s specified interval, typically between 1,000 and 1,500 hours or three to five years depending on the engine. Never extend timing belt intervals based on apparent condition. A timing belt that appears serviceable can fail without warning at any point beyond its replacement interval.

Belt Noise Diagnosis

Belt noise provides early warning of developing problems. Recognising different noise types directs the technician to the correct diagnosis quickly.

Squealing on startup that diminishes as the engine warms up indicates belt slippage from incorrect tension or a worn belt surface. Squealing that persists at operating temperature indicates a seized accessory component or severely worn belt.

Chirping at regular intervals that corresponds to belt rotation speed indicates a misaligned pulley or a belt with a localised hard spot from oil contamination or heat damage.

Knocking or slapping indicates a severely loose belt or a belt with a section of missing material. This condition risks the belt leaving the pulleys entirely, causing immediate loss of all driven accessories including the cooling fan and water pump.

Grinding noise from the pulley area indicates bearing failure in one of the driven accessories. The failed bearing causes misalignment of its pulley, accelerating belt wear and potentially causing belt failure. Identify and replace the failed bearing immediately.

Exhaust System Inspection and Carbon Monoxide Safety

The exhaust system removes combustion gases from the engine and routes them safely away from the generator and its surroundings. It also reduces exhaust noise to acceptable levels and on modern generators manages exhaust emissions through catalytic and particulate filtration systems. Exhaust system maintenance protects both engine performance and human life.

Carbon Monoxide: The Critical Safety Warning

Carbon monoxide is a colourless, odourless, tasteless gas produced by every internal combustion engine during operation. It is fatally toxic at concentrations above 1,600 parts per million and dangerous at concentrations as low as 70 parts per million with prolonged exposure. Generator related carbon monoxide poisoning causes deaths every year globally.

Carbon monoxide kills silently. There is no smell, no visible smoke, and no warning until symptoms of poisoning appear. By the time symptoms including headache, dizziness, nausea, and confusion are recognised, the affected person may already be too impaired to escape the contaminated area.

Never operate a generator indoors, in a garage, in a partially enclosed space, or within 3 metres of any door, window, or opening that leads to an occupied space. This rule applies without exception regardless of the duration of operation or the apparent ventilation of the space.

Install carbon monoxide detectors in any building adjacent to an outdoor generator installation. Position detectors at breathing height, approximately 1.5 metres above floor level, in rooms that share walls with the generator installation. Test detectors monthly and replace batteries annually.

Exhaust system maintenance directly affects carbon monoxide safety. A leaking exhaust manifold gasket, cracked exhaust pipe, or failed exhaust joint releases carbon monoxide at points other than the designed exhaust outlet, potentially directing it toward occupied areas rather than safely away from the building.

Exhaust System Inspection Procedure

Inspect the complete exhaust system at every 250 hour service with the generator shut down and cooled completely. Exhaust components operate at temperatures between 300 and 600 degrees Celsius during normal operation. Inspecting a hot exhaust system causes serious burns.

Begin at the exhaust manifold where combustion gases leave the cylinder head. Inspect the manifold for cracks, particularly around the port flanges and casting joints where thermal stress is highest. Check the manifold gasket for leakage, visible as black carbon deposits around the gasket perimeter. A leaking manifold gasket releases hot exhaust gases and carbon monoxide at the cylinder head junction.

Follow the exhaust pipe from the manifold to the muffler, inspecting every section for cracks, corrosion, and joint integrity. Pay particular attention to bends and welded joints where fatigue cracking from vibration and thermal cycling is most likely to occur.

Inspect the muffler for external corrosion, physical damage, and internal blockage. A muffler that sounds louder than normal may have internal baffles that have corroded and collapsed, reducing its noise attenuation. A muffler that causes increased back pressure, detectable as loss of engine power and increased exhaust temperature, has either collapsed internally or accumulated excessive carbon deposits.

Check all exhaust joints and clamps for tightness and condition. Exhaust clamps corrode progressively in the high temperature environment and lose clamping force over time. Replace corroded exhaust clamps and tighten all joints to the manufacturer’s specified torque.

Exhaust Smoke Diagnosis

Exhaust smoke colour is one of the most powerful diagnostic tools available to generator technicians. Different smoke colours indicate different developing problems with high diagnostic specificity.

White smoke that appears briefly on cold startup and clears within two to three minutes of reaching operating temperature is normal condensation burning off from the exhaust system. White smoke that persists after the engine reaches operating temperature indicates coolant entering the combustion chamber through a failing head gasket or cracked cylinder head. This is a critical fault requiring immediate shutdown and investigation.

Black smoke indicates a rich fuel mixture, meaning the engine is receiving too much fuel relative to the air available for combustion. Common causes include a severely clogged air filter restricting airflow, faulty or worn injectors delivering an incorrect fuel spray pattern, a turbocharger that is not providing adequate boost pressure, or the generator being overloaded beyond its rated capacity.

Blue smoke indicates oil burning in the combustion chamber. Common causes include worn piston rings allowing oil to pass from the crankcase into the cylinders, worn valve stem seals allowing oil to enter the combustion chamber past the valve stems, or overfilled engine oil being forced past seals into the intake system. Blue smoke on startup that clears after a few minutes typically indicates valve stem seal wear. Persistent blue smoke throughout operation indicates piston ring wear.

Grey smoke on diesel generators indicates incomplete combustion from injector problems, incorrect injection timing, or turbocharger inefficiency. It can also indicate the beginning of wet stacking on a generator that has been running at low load for an extended period.

Wet Stacking Prevention and Treatment

Wet stacking is a condition specific to diesel generators that occurs when the engine runs for extended periods below 30% of its rated load. Unburned fuel, carbon deposits, and condensed water accumulate in the exhaust system, turbocharger, and injectors. Symptoms include black oily residue around exhaust joints, excessive black smoke during operation, loss of power output, and increased fuel consumption.

Wet stacking occurs most commonly in standby generator applications where the generator runs briefly during weekly test periods without carrying significant load. A generator running at no load for a thirty minute weekly test produces insufficient combustion heat to burn off accumulating deposits.

Prevent wet stacking by ensuring the weekly test run carries a load of at least 30% of the generator’s rated output. Connect actual loads or use a portable load bank during test runs to achieve adequate loading.

Treat established wet stacking by running the generator at 75% or more of its rated load for a minimum of two hours. This sustained high load operation raises exhaust temperatures sufficiently to burn off accumulated deposits throughout the exhaust system. This process is known as a load bank test and should be performed at every annual service on standby generators regardless of whether wet stacking symptoms are present.

Building a Generator Maintenance Schedule That Works

A generator maintenance schedule is only as effective as the discipline applied to following it. The technical procedures covered in this guide represent global best practice for diesel and petrol generator servicing. However, the procedures themselves are only half the picture. The other half is consistency.

Generators that receive weekly checks, monthly assessments, 250 hour intermediate services, and 500 hour major services on time, every time, routinely achieve service lives of 20,000 hours or more. Generators that receive maintenance only when problems become apparent rarely reach 5,000 hours without major mechanical intervention. The difference is not the quality of the generator. It is the quality of the generator maintenance schedule applied to it.

When Your Generator Maintenance Schedule Reveals a Fault

A well executed generator maintenance schedule does more than prevent failures. It reveals developing faults early enough to address them before they cause breakdown. When your maintenance checks reveal oil contamination, coolant loss, abnormal battery readings, or unusual exhaust smoke, those findings require systematic fault diagnosis before the next service interval.

Our complete guide to generator fault diagnosis covers every common generator fault with systematic diagnostic procedures for mechanical, electrical, fuel system, and control system problems. It is the natural next step when a generator maintenance schedule reveals a developing problem that requires investigation beyond routine servicing.

Professional Generator Maintenance Schedule Services

Maintaining a generator correctly requires time, technical knowledge, and the right equipment. Many businesses and facilities find that outsourcing their generator maintenance schedule to a professional service provider delivers better results at lower total cost than attempting in-house maintenance without specialist expertise.

Mega Solution Electrical Engineering Ltd provides comprehensive generator maintenance schedule services for residential, commercial, and industrial clients across Ghana. Our maintenance programmes cover all service intervals from weekly checks through to complete 500 hour major overhauls, using manufacturer specified parts, calibrated test equipment, and experienced generator engineers.

Every Mega Solution Electrical Engineering maintenance visit includes a detailed service report covering all checks performed, findings recorded, parts replaced, and recommendations for any further action required. Our maintenance logs provide the complete documented service history that extends generator warranty coverage, supports insurance claims, and demonstrates due diligence to regulatory authorities.

Contact Mega Solution Electrical Engineering Ltd today to discuss a generator maintenance schedule tailored to your specific generator type, operating environment, and budget requirements.
